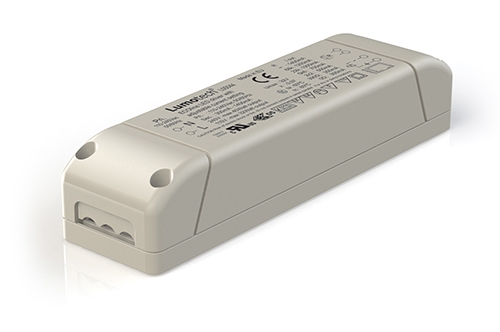

LEDdriver L05044 EcoLine 40W 300mA
Features
Article code: L05044 - Brand Lumotech
- Very high power factor.
- 32/40 Watt LED Driver (depends on the input voltage).
- Adjustable current output (Up to 1,4A).
- SELV-equivalent.
- Fourfold protection: Thermal, short circuit, over voltage and open circuit.
Before using a driver always read the manual first which is included with the driver package
Specifications
| Type: | Constant current | |
| Current output: |
300mA - 1400mA |
|
| Mains voltage: |
110/240V, 50/60Hz |
|
| Power output: | 40W at 230Vac, 32W at 110Vac | |
| Voltage output: | 15-32V | |
| Dimmable: | No | |
| Weight: | 160gr | |
| Size: | Ø156x42x32mm | |
| Max. temperature (tc): | 85°C | |
| Ambient temperature (ta): | -25 to +60°C | |
| Approvals: | EN55015 - CE | |
| Classification: | II | |
| Fourfold protection: | Thermal, short circuit, over voltage and open circuit |
