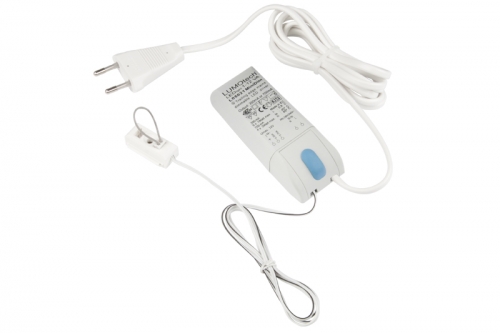

LEDdriver L05021NS 1-12VA Minidim Manual Dimmable
Features
Article code: KL876804 - Brand Klemko
High power factor.
No electrolytic capacitors are used, giving this Driver a maximum lifetime durability.
Mains dimmable LED Driver (See the Dimmerlist for tested dimmers).
2 different current settings (350mA or 700mA)The default current is 700mA.
SELV-equivalent.
Fourfold protection: Thermal, short circuit, over voltage and open circuit.
Mains cord and Lumoluce connection box included.
Before using a driver always read the manual first which is included with the driver package!
Specifications
| Type: | Constant current | |
| Current output: | 350mA or 700mA | |
| Power output: | 12W | |
| Dimmable: | Mains dimmable , see the dimmerlist | |
| Weight: | 170gr | |
| Size: | Ø99x39x23,5mm | |
| Power factor (λ): | 0,9C | |
| Max. temperature (tc): | under 85°C | |
| Ambient temperature (ta): | -20 to +50°C | |
| Approvals: | KEMAKEUR, ENEC 05, CE | |
| Fourfold protection: | Thermal, short circuit, over voltage and open circuit |
